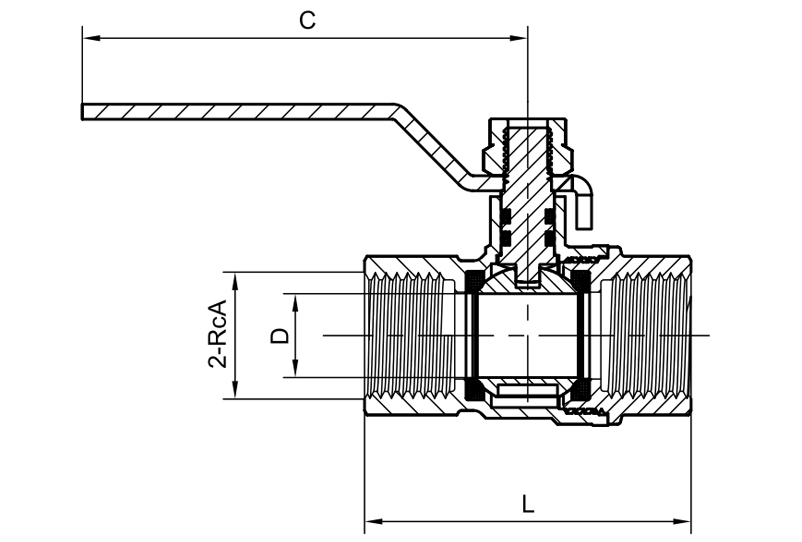

YH-220 Full Port Brass Ball Valve with Long Handle（F/F)

【Core Advantages】
Full‑port design keeps complete internal bore when opened for minimal pressure drop and smooth full‑flow performance. Double female‑thread (F/F) with long handle enables easy operation and clear status indication. Available in G, Rc, NPT threads and sizes 1/2″‑2″, compatible with different regional gas piping standards for flexible and reliable installation.

【Product Features】
• Nominal Pressure: 1.6 MPa
• Working Medium: Natural gas, Artificial gas, Liquefied petroleum gas
• Working Temperature: -20℃ ≤ t ≤ 80℃
• Size: 1/2, 3/4, 1, 1¼, 1½, 2
• Thread: G, Rc, NPT

【Applications】
Gas meter inlets, main branch pipelines and manifolds for residential, commercial and light‑industrial gas systems. Suitable for sites requiring full‑bore flow and multiple thread choices.

【FAQs & Solutions】
Q: What is the benefit of full port?
A: The ball bore matches the pipe size, so the valve causes almost no flow restriction compared with reduced‑port valves.
Q: Which thread should I choose?
A: Select G, Rc or NPT to match your regional piping standard; the valve family offers all three.

【Important Notes】
Confirm the selected thread standard matches your piping before ordering. For gas service, use gas‑rated sealant and leak‑test all joints after installation. Full port means low resistance—operate the valve full open or full closed, do not use it for throttling.
