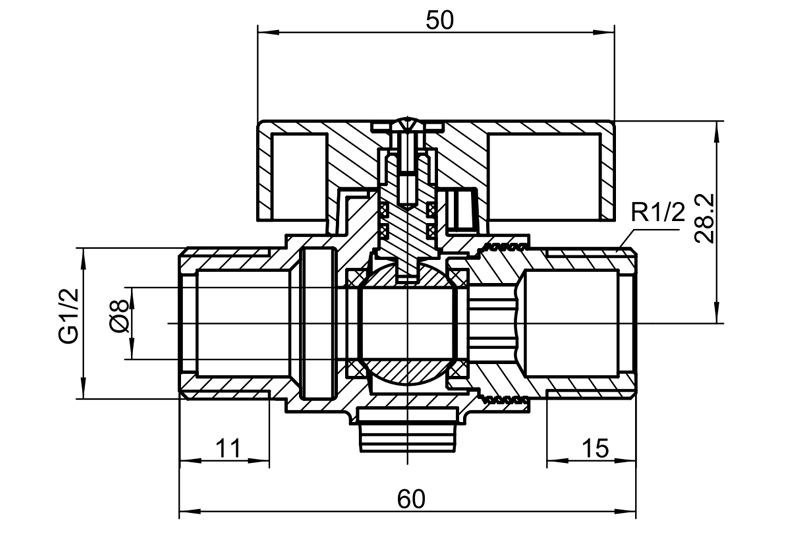

YH-212 Brass Ball Valve with Base(M/M)

【Core Advantages】
Full Male Thread (M/M) Direct Connection Design: Both ends feature male threads, enabling direct embedding into piping systems. Ideal for "series installation" scenarios, it eliminates diameter contraction caused by female-threaded interfaces, delivering higher flow rates.
Thickened Base for Enhanced Pressure Resistance: The base is reinforced for improved pressure resistance, allowing it to withstand greater pipeline tension. Suited for long-distance pipelines and outdoor overhead gas pipeline installations.
High-Temperature Resistant Sealing: The valve seat is made of high-temperature resistant fluororubber, ensuring stable operation in media up to 80℃ and compatible with special working conditions such as hot water and high-temperature gas.

【Product Features】
• Nominal Pressure: 1.6 MPa
• Working Medium: Natural gas, Artificial gas, Liquefied petroleum gas.
• Working Temperature: -20°C - 80°C
• Parallel Pipe Thread to ISO228

【Applications】
Applied to gas meter, cooker and boiler shut-off valves, gas manifold and equipment panel mounting, perfect for prefabricated gas pipelines, RV and marine gas systems requiring fixed valve positioning.

【FAQs & Solutions】
Q: What’s the function of mounting base?
A: Bolt the valve to fixed surfaces to stop twisting during handle rotation and avoid gas leakage.
Q: How to judge open/closed status?
A: T-handle parallel to pipe = open; perpendicular to pipe = closed.

【Important Notes】
For gas installation, use gas-rated PTFE tape or thread sealant and perform a soap-bubble leak test after connection.
Bolt the base securely to a rigid surface before connecting pipes; do not rely on the pipes to hold the valve.
Do not exceed 80°C; this valve is not for steam.
Operate the handle with moderate force; if the valve is stiff, do not use pliers — check for misaligned piping or debris.
For outdoor installation, protect the valve with a weather cover if exposed to direct rain or UV for extended periods.
